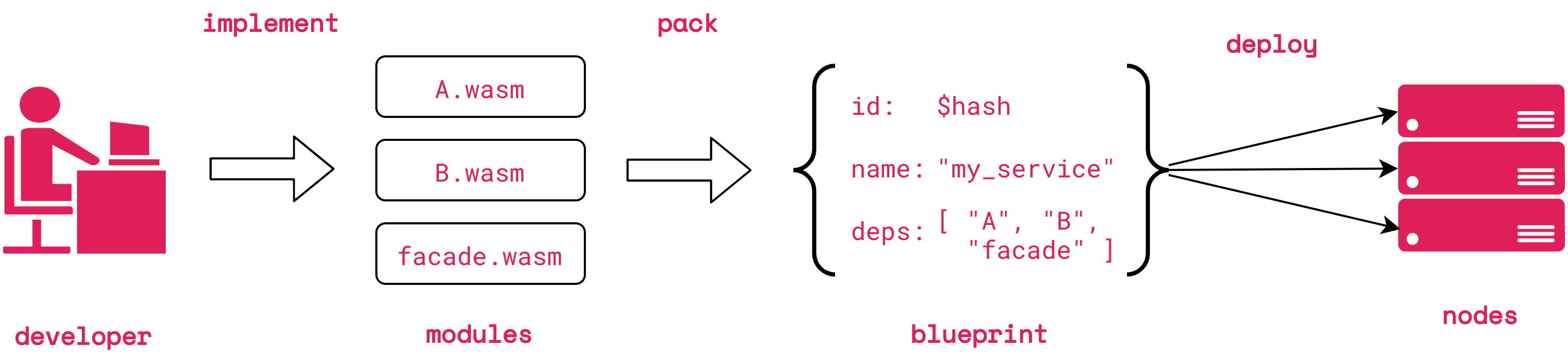

To create a service, you need three things:
- WebAssembly modules (.wasm) that define the logic of the service
- Blueprint that specifies the name and id of the service, as well as its dependencies
- A node or nodes for hosting the service


Modules
Each service can include three possible kinds of .wasm
modules:
- Facade module
This module provides an API that is callable from AIR scripts. Facade modules
usually import pure and effector modules and provide a clear API over them.
Each service must contain a single facade module.
-
Pure modules
These are your regular.wasm
modules, but with a fundamental limitation: they
cannnot cause any effects, such as accessing the file system, calling OS binaries
or functions from non-pure modules. -
Effector modules
These modules do not have any limitations. They can modify files, run external
programs, etc. All effects occur through the WebAssembly system interface (WASI).
You can have a service consisting of a single module. This module will automatically be a facade module.
To use a module as a part of a service, this module must be uploaded to the node where the service will be created and hosted.
To upload a new module, you can use the add_module built-in function.
To learn how to add modules from JS SDK, refer to JS SDK doc.
Blueprints
To create a service, the node needs information about what modules to use. The node takes it from a blueprint. The blueprint is just a configuration object of the following structure:
{
"id": "uuid-1234-...",
"name": "some name",
"dependencies": [ "module_a", "module_b", "facade_module" ]
}
Each blueprint is referred to by its id
, also called blueprint_id
in some built-in functions. Dependencies in blueprints are specified as the list of module names, which are not checked for validity. So you do not need to synchronize adding blueprints and modules.
You can use the add_blueprint built-in function to add new blueprints to the node where you want to create the service.
To learn how to add blueprints from JS SDK, refer to JS SDK doc.
Once the blueprint is added to the node, it remains there and will be used when creating the service.
Create service
After you have developed the service modules and uploaded them to the node along with the blueprint specifying which modules to use, you are ready to create the service.
To draw an analogy from programming languages, blueprints are like classes, and services are like instances, that is, concrete objects created.
To create a service, you need to call the srv create built-in function.
To learn how to create services in JS, refer to JS SDK doc.
Environment variables
TBD
Remove service
TBD
